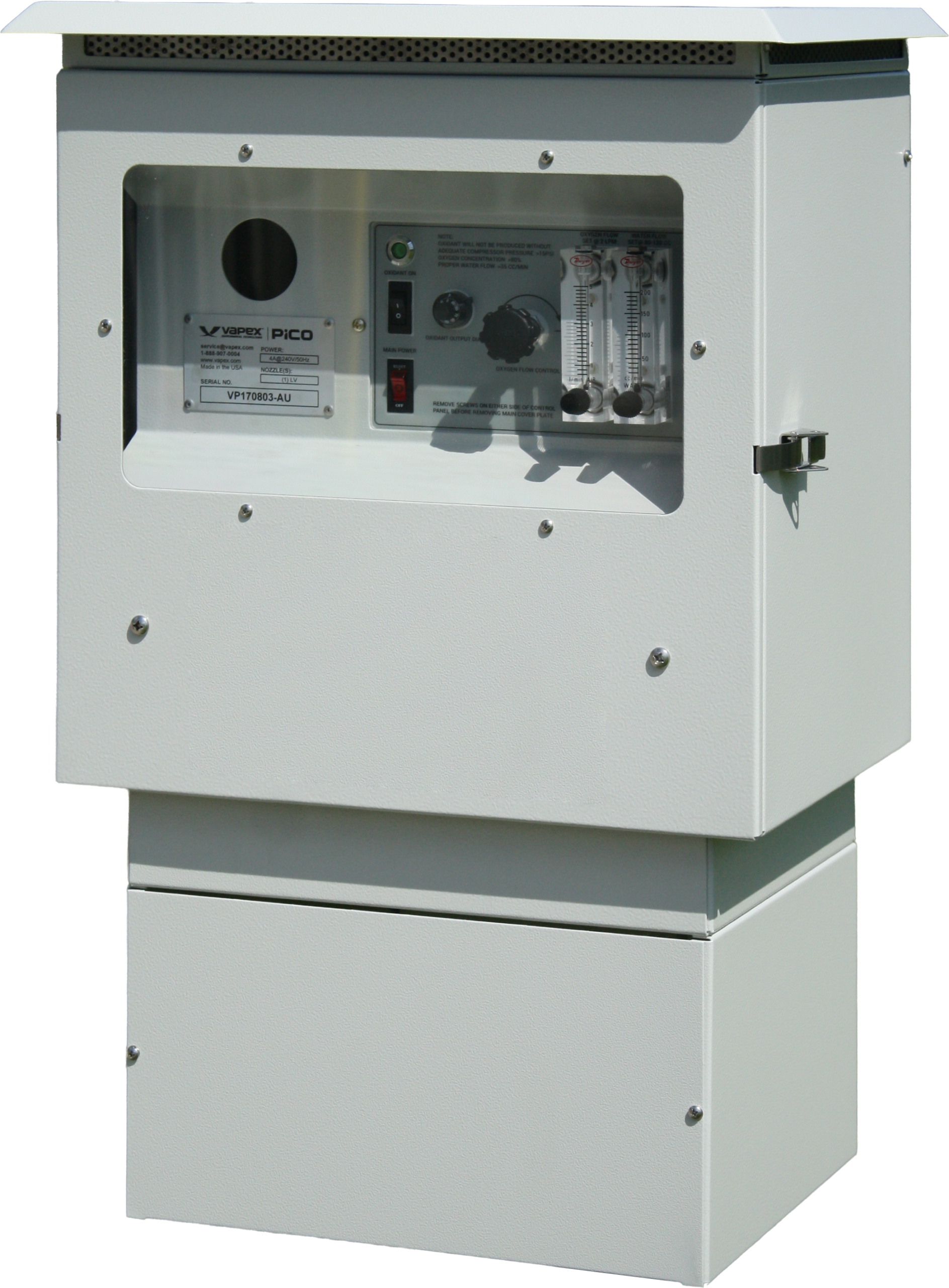

Compact Wastewater Odor Control System
The compact entry point to the VAPEX product family. Engineered for localized wastewater structures, tight footprints, and field pilot programs, the PICO delivers targeted hydroxyl-radical fog to control odor at the source.
THE VAPEX ADVANTAGE
What the System Delivers
Whether installed in a small lift station, wet well, or remote municipal site, PICO provides advanced hydroxyl radical technology to help improve air quality and reduce wastewater odors.
Technical Specifications
High Efficiency, Low Impact Odor Control
Consuming only 1.5 gallons of water per hour and refrigerator-level energy, the PICO combines nozzles, plasma generation, and corrosion resistance for sustainable, high-impact odor elimination.
SYSTEM
Maximum Oxidant Output
20 g/hr
Maximum Number of Nozzles
1 LV Nozzle
Maximum Treatment Volume (Maximum treatment volume is dependent on application)
1,000 ft3
Maximum Distance Between Nozzle & Unit (Maximum distance based on a straight line. Actual distance may be affected by elevation and bends)
150 ft

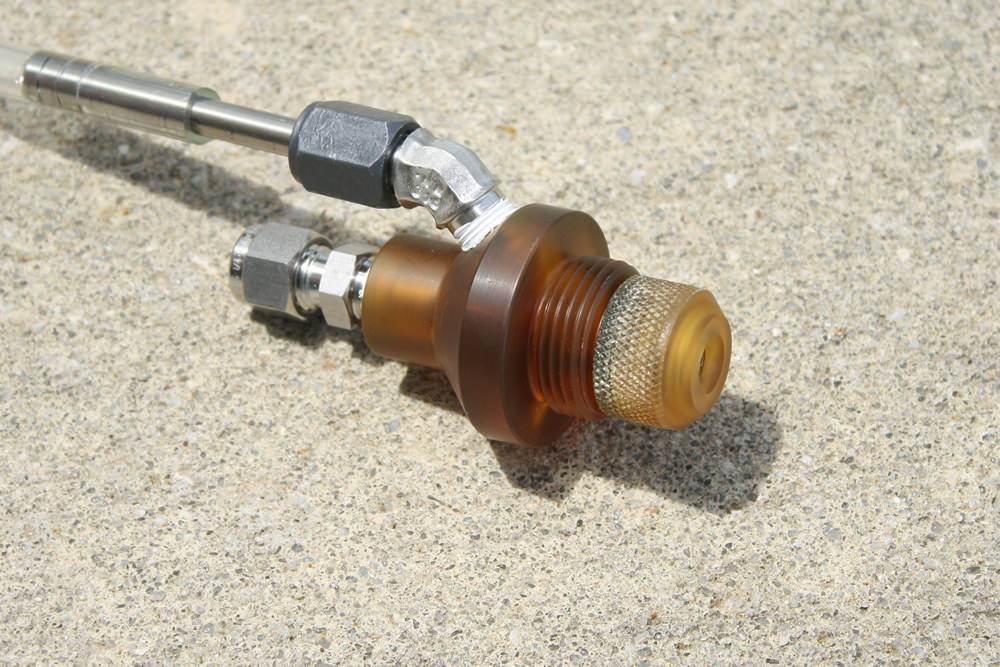

Nozzle Properties (LV Nozzle)
Average Air Output
1 LV Nozzle
Water Usage
1.5 gal/hr
Physical Properties
Enclosure
TGIC Polyester Powder Coated Aluminum
Unit Dimensions, with Pedestal (LxWxH)
20 in x 18 in x 32 in
Installation
Wall or Pole Mount
Unit Weight
55-75 lbs
Operating Temperature
20°F to 100°F
Power Supply
110-120 VAC, 15A, 60 Hz, Single Phase
Water Supply
Quality
Potable
Minimum Supply
2 gal/hr
Minimum Water Pressure
25 psi
Maximum Water Pressure
75 psi
