Advanced Treatment for Demanding Wastewater Structures

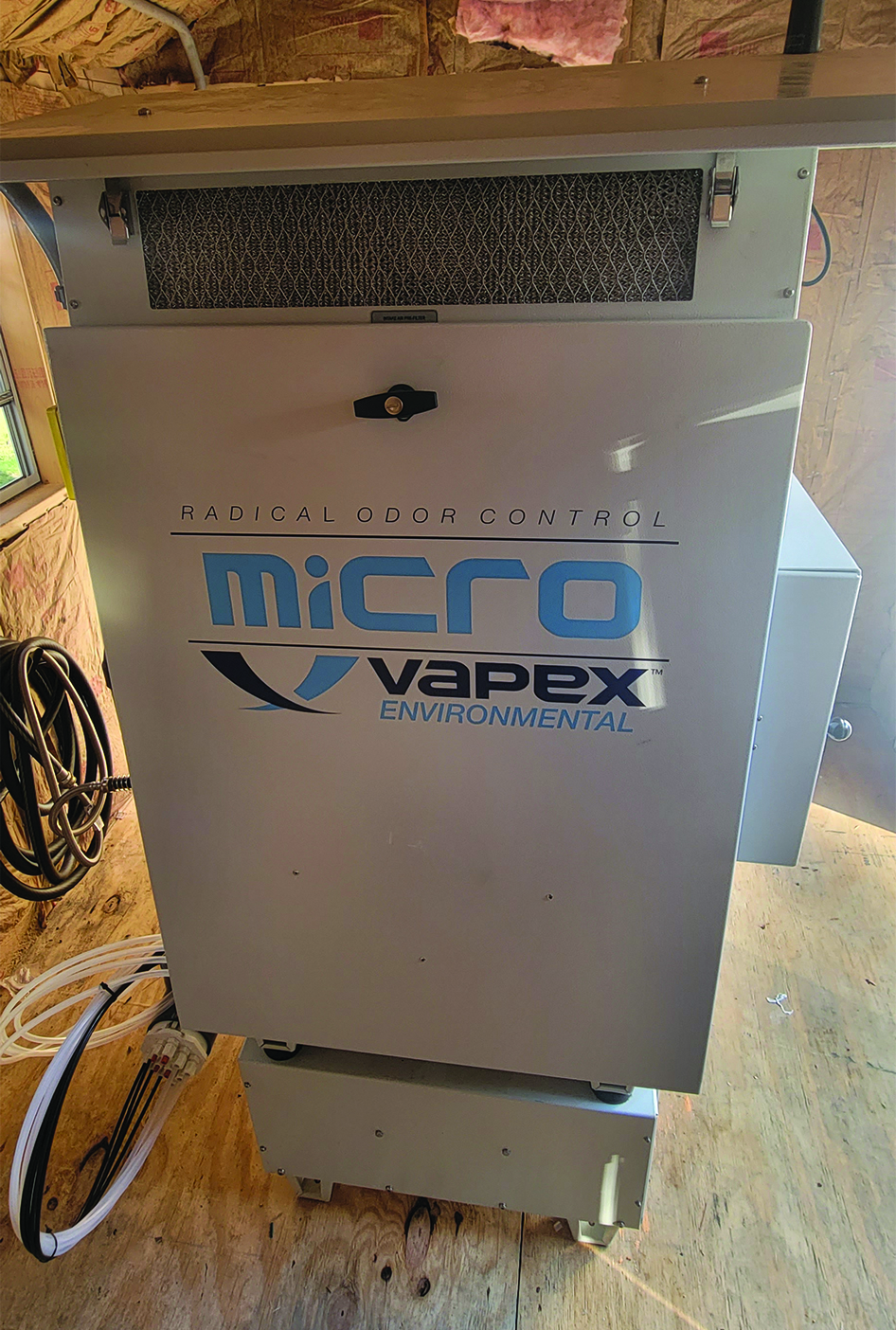

The MICRO is designed for larger enclosed spaces, stronger odor loading and applications requiring broader distribution than compact platforms can provide.
THE VAPEX ADVANTAGE
What the System Delivers
Engineered for higher contaminant loads and expanded enclosures. The MICRO offers high oxidant production and multi-point distribution, making it ideal for high-H2S environments and large wet wells.
Technical Specifications
Compact Hydroxyl Radical Control for Persistent Sewer Odors
Featuring 50g/hr oxidant output, auto shutoff safeguards, real-time condition monitoring, and corrosion-resistant design, the MICRO balances efficiency with reliability for long-term odor and microbial management.
SYSTEM
Maximum Oxidant Output
50 g/hr
Maximum Number of Nozzles
4
Maximum Treatment Volume (Maximum treatment volume is dependent on application)
26,000 ft3
Maximum Distance Between Nozzle & Unit (Maximum distance based on a straight line. Actual distance may be affected by elevation and bends)
300 ft
Nozzle Properties (LV Nozzle)
Average Air Output
1.5 CFM
Water Usage
1.5 gal/hr
Nozzle Properties (HV Nozzle)
Average Air Output
30-40 CFM
Water Usage
8 gal/hr
Physical Properties
Enclosure
TGIC Polyester Powder Coated Aluminum
Unit Dimensions, with Pedestal (LxWxH)
50 in x 33 in x 69 in
Minimum Installation Pad
72 in x 72 in x 4 in
Unit Weight
200-400 lbs
Operating Temperature
20°F to 100°F
Power Supply
208-240 VAC, 30A, 60 Hz, Single Phase
Water Supply
Quality
Potable
Minimum Supply
10 gal/hr per nozzle
Minimum Water Pressure
25 psi
Maximum Water Pressure
75 psi
